Drill Point Grinder, (2-13mm), 0.08″ to 0.05″

• .08″ to .5″ (2-13mm)
• 90° – 140° point angle
• Includes wheels, collets

SKU DSX-213 Categories Drill Point Grinders, Sale Items Tag Grind drill points

$ 649 (USD)

CAD: $ 893
EUR: €571.55

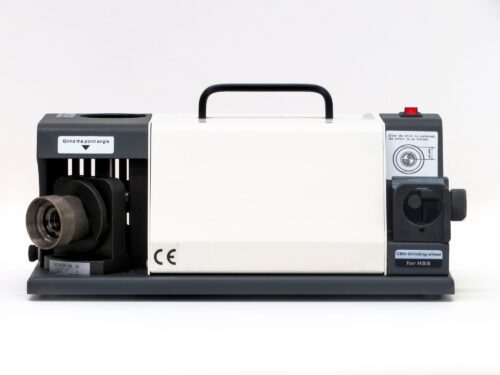

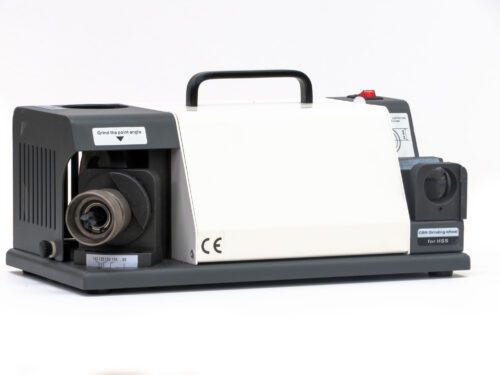

The DSX213 Drill Sharpener - HSS or Carbide drills .08″ to .5″ diameter

The DSX213 Drill Point Grinder This drill sharpener is easy to use, has a small footprint and all-steel powder coated, heavy duty construction for industrial tool sharpening.

Fast and accurate .0005" repeat-ability. collet chuck type.

Cuttermasters drill point grinders are stocked, tested and warrantied in North America.

This is the most well built Drill Point grinder on the market in this class. These are beautiful machines

Grinding wheel quality is integral to the success of drill point grinding. Our wheels are produced using General Electric abrasive media under strict conditions to ensure long life, and in some cases are designed by Cuttermasters in North America.

Conventional chisel tip or Back split (center cutting)
Creates center cutting geometry or chisel tip (adjustable dept of cut, and swing)
High accuracy balance of tip geometry (adjustable depth of cut)
Easy to operate, Very accurate
Precision Chuck with Thrust Bearing
Quiet Powerful DC motor
Industrial quality

Request a Quote or Call us at 1 (800) 417-2171

Specifications

Drill Diameter	.08″ ~ .5"
Power Supply	AC 120V 50/60Hz, 250W, AC 220V(Opt.)
R.P.M of Motor	4400
Grinding Wheel	Single wheel is used, choose CBN (DS13-C140) for steel or diamond (DS13-D140) for carbide
Weight	N.W 9Kg G.W 14Kg
Machine Size	L 300mm, W 165mm, H 130mm
Packing Size	L 360mm W 210mm, H 190mm
Standard Accessories	High Precision Collet Chuck, Set: 3 sets (6 pcs)Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs* Optional Grinding Wheel CBN or Diamond
