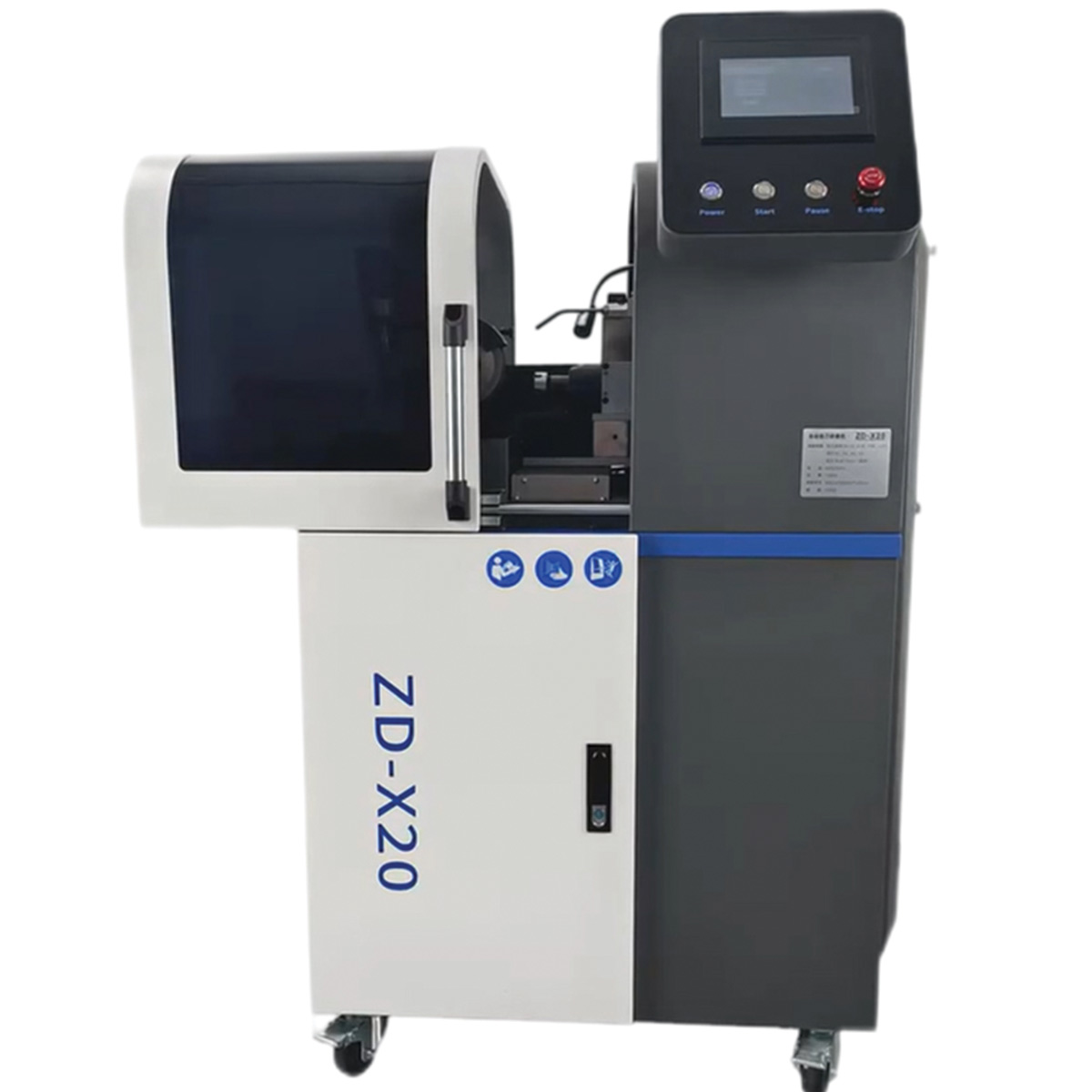

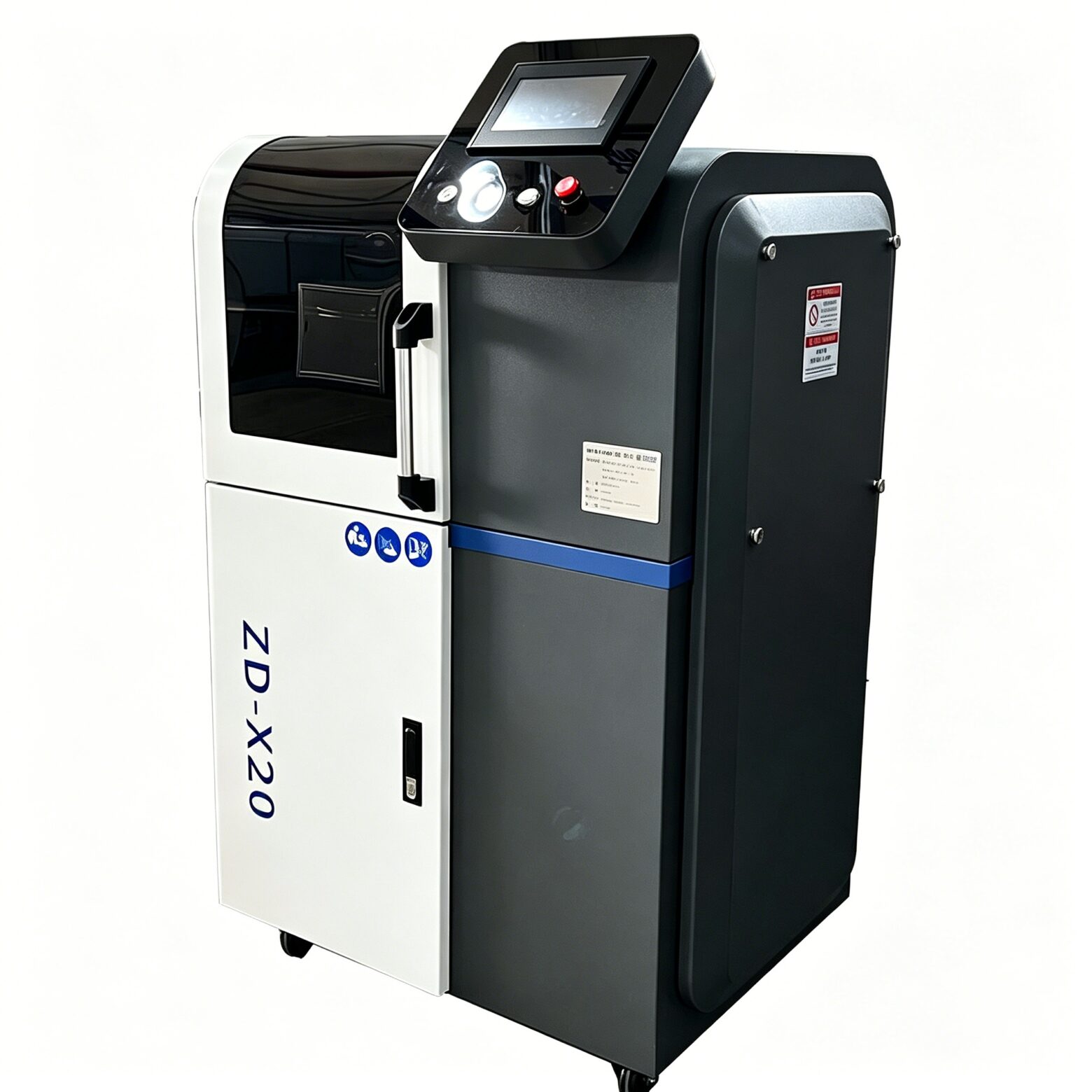

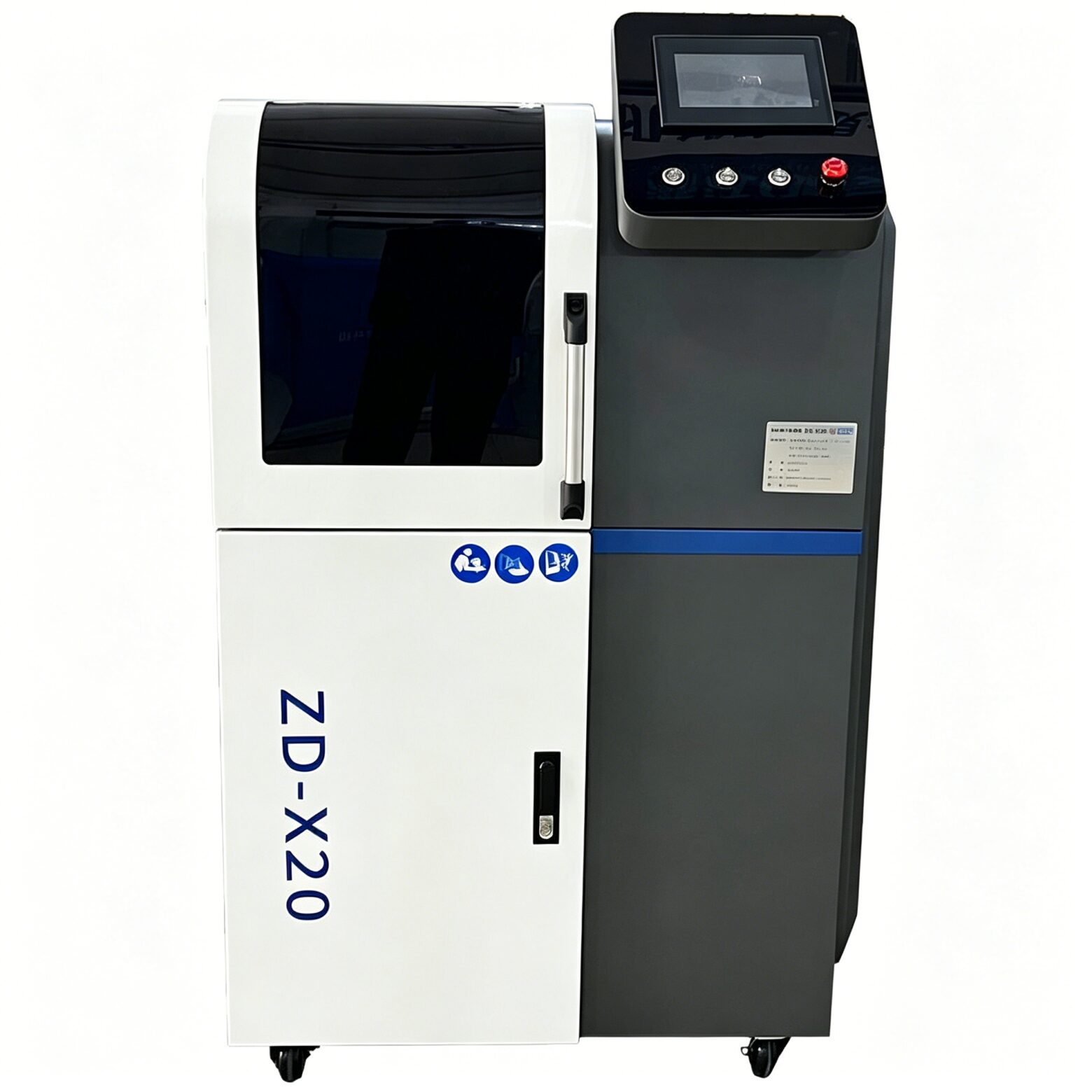

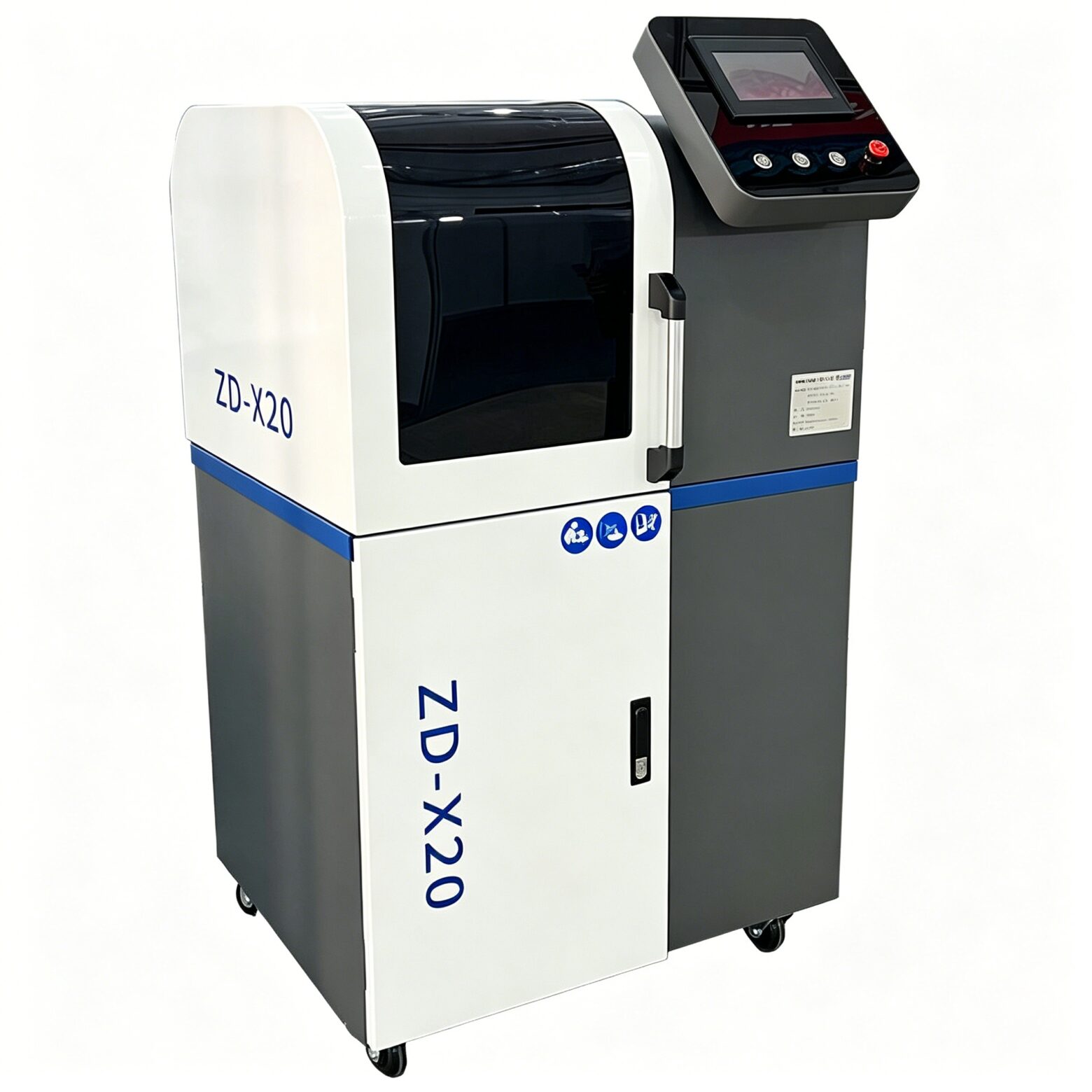

ZD20 CNC Tool Grinder
ZD-X20 SPECIFICATIONS
| Applicable Diameter | Ø 4 – 20 mm (5⁄₂₄″ – ¾″) |
| Applicable Flutes | 2, 3 & 4 flute end mills |
| Tool Types | End mill, ball nose, drill, chamfer, bull nose |
| Operation Mode | Automatic CNC — auto angle detection |
| Cooling System | Water-cooled core motor spindle |
| Axial Angles | Primary 20° / Secondary 6° / Gash 30° |
| Grinding Wheel | E20SDC180 diamond (CBN optional) |
| Motor Output | 600 W |
| Rated Speed | 6,000 – 9,000 RPM |
| Power Supply | 220 V ± 10% |
| Precision | 0.01 mm |
| Dimensions | 306 × 202 × 250 mm |
| Weight | 20 kg (44 lbs) |
| Grinding Time | Under 60 seconds per tool |
| Cost Reduction | Up to 60% vs. buying new |
| Accessories Included | Collet set, 2/3/4-flute holders, case, wrench, brush |
$ 8,070 (CAD)
- USD: $ 5,865
- EUR: €5,165.13
Out of stock
