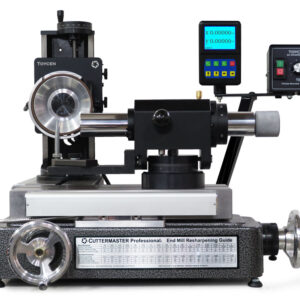

Journeyman Tool Grinder ready to grind end mill ends and flutes (and more)
– Complete with
- Base assembly has been built to accommodate a digital readout
- 82mm 350 watt DC motor
- Vibration-dampening feet
- Work light
The 2024 Journeyman End Mill Sharpener is a good blend of old and new. The state-of-the-art silent DC drive on the old reliable CUTTERMASTER frame is compatible with all legacy CUTTERMASTER accessories. Easy to set up with the best air spindle on the market. The Journeyman is our most capable grinder on the stock Cuttermaster motor configuration.
The JX features an 82mm 130V DC 500 watt 500 to 4500 RPM, on a rotate and tilt base with a Tower mounted Toycen DC whisper Drive control,
This is the bare machine and comes complete with collets and an aluminum oxide grinding wheel – everything you need to get started grinding ends and flutes. We recommend one or two of our resin bond CBN (for high-speed steel tools) and diamond (for carbide) cup wheels to upgrade your sharpening system. Choose our Production Support Package which is a great deal on resin bond cup wheels, wheel truing device, countersink and step drill cams and a plated face wheel.
The Patented Multi-Axis, Torque Compensating DC Motor Head with whisper drive helps to eliminate tool burning (and you can hear what you’re doing).
Journeyman Operations
- Grind ends and flutes (primary and secondary grinds) 1/8″ to 2″ diameter
- Grind corner radiuses: bull nose and ball nose, primary and secondary grinds
- Reduce the neck diameter of your tools
- Cut off your tools
- Grind Weldon flats in your tools (grind set screw flat on carbide end mill shank)
- End gash your tools
- Grind annular cutters
- Cylinder grind small rounds
- Grind countersinks, step drills, hoggers, finishers, and reamers
Shipping Included in Price
On online orders to Canada and the contiguous USA, we split the freight with you. Customs and duties included, this grinder ships for a flat rate of $250 USD (transit time 5-7 business days).
Journeyman Specifications
| Air Bearing Stroke | 10.5″ (266.7mm) |
| Air Bearing Swing Over Table | 9.8″ (248.92) |
| Cutting Tool Capacity | 2″ shank, 9.8″ O.D. |
| Flute Length | 10.5″ |
| T-Slot Dimension | 0.8″ (20.32mm) x 0.5″ (12.7mm) x 0.67″ (17.018mm) |
| Table Feed Gradations | 0.001″ (0.02mm) |
| X-Axis Table Travel | 6″ (152.4mm) |
| Y-Axis Table Travel | 3″ (76.2mm) + sildes back & forth 6″ (152.4mm) |
| X-Axis Table Working Space | 16.5″ (419.1mm) x 5.5″ (139.7mm) |
| Y-Axis Table Working space | 13″ (330.2) x 5.5″ (139.7) |
| Wheel | 5″ x 1.25″ cup or 6″ dish with Z-axis |
| Motor Tilt | +35° -8° |
| Motor | 1/3 hp, 3450 rpm, 110v / 60Hz or 220v 50Hz |
| Net Weight | 180lbs (82Kg) |
| Gross Weight | 232lb (106Kg) |
| Machine Dimensions excluding handles | 21″ x 20″ x 21″ |
| Shipping Dimensions | 30″ x 28″ x 29″, 200lbs |
