CM03P Rad-Linear Tool Spindle.
~End Feature Grinding Fixture~

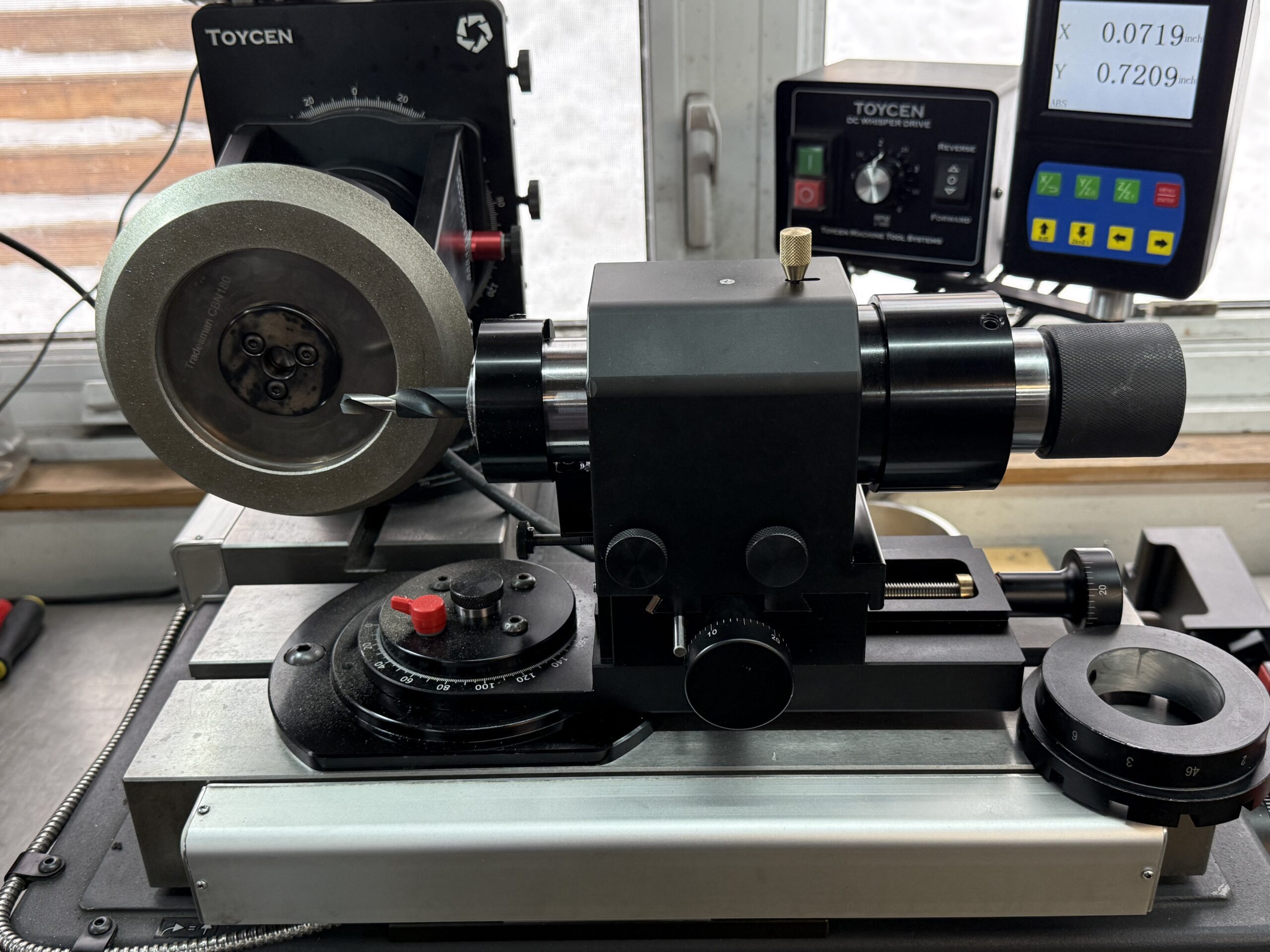

This is a JXT with the CM03P Rad-Linear
(Combination Radial and Linear bearing). CM03P is a radius attachment with
5C Spindle both radial Swing, Rotational and linear movements This allows the device to Grind a cylinder (shank reduction, swing a radius, plunge a countersink grind or position an angled end grind.
The lubricated radial bearing is for neck reduction grinding and tool cut offs.
The Linear travel allows for sharpening Countersinks, Step drills and Taps

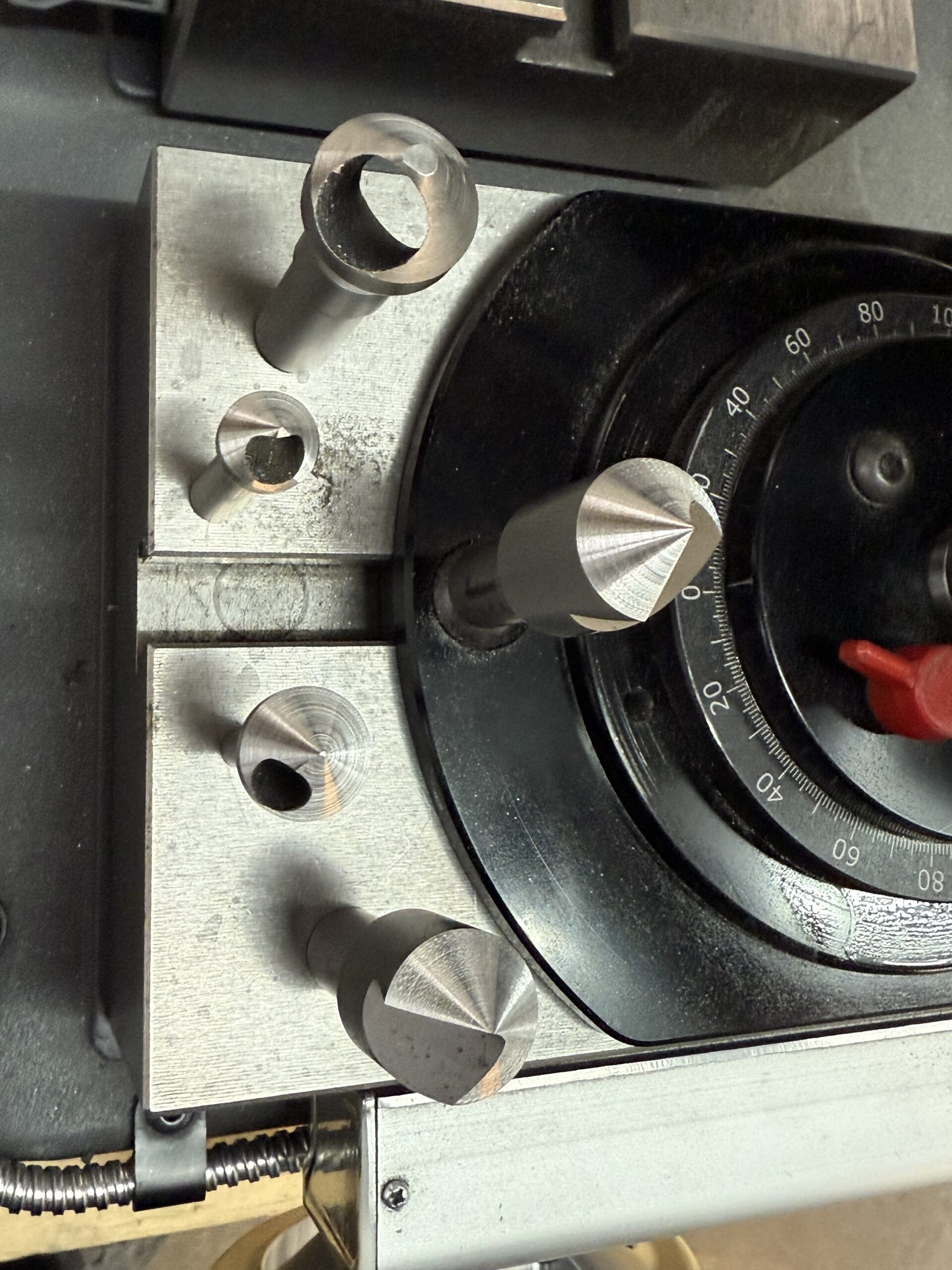

This fixture will Sharpen Annular Cutters , End mill ends , Corner Radius, Ball Nose Ends, Faceted Tip Drills . Taps, Countersinks, Reamers, Neck Reduction Grinds and Tool Cut offs
The CM03P is a radial honed bearing, lubricated spindle ,not a linear air bearing.
This tool spindle is designed to rotate precisely with out the chatter of an air spindle doing an end grind , and position accurate tool end grind.
