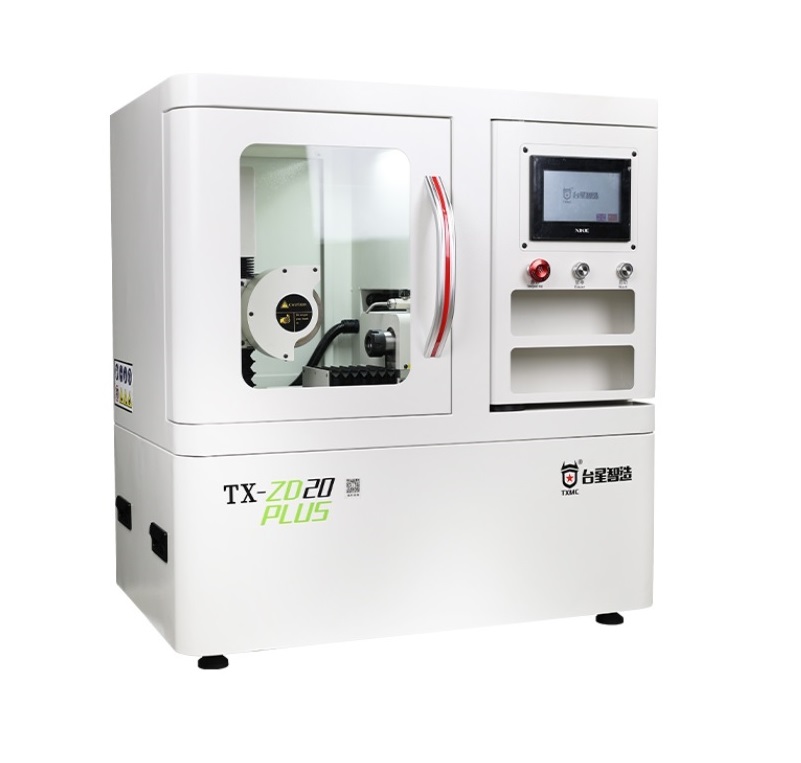

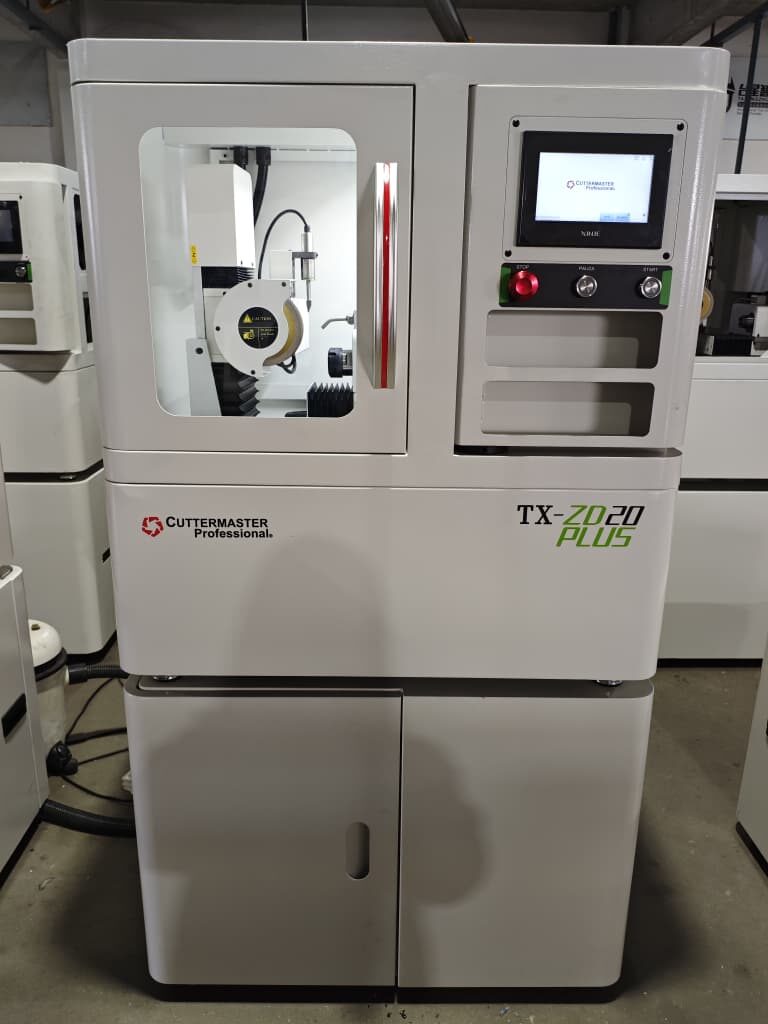

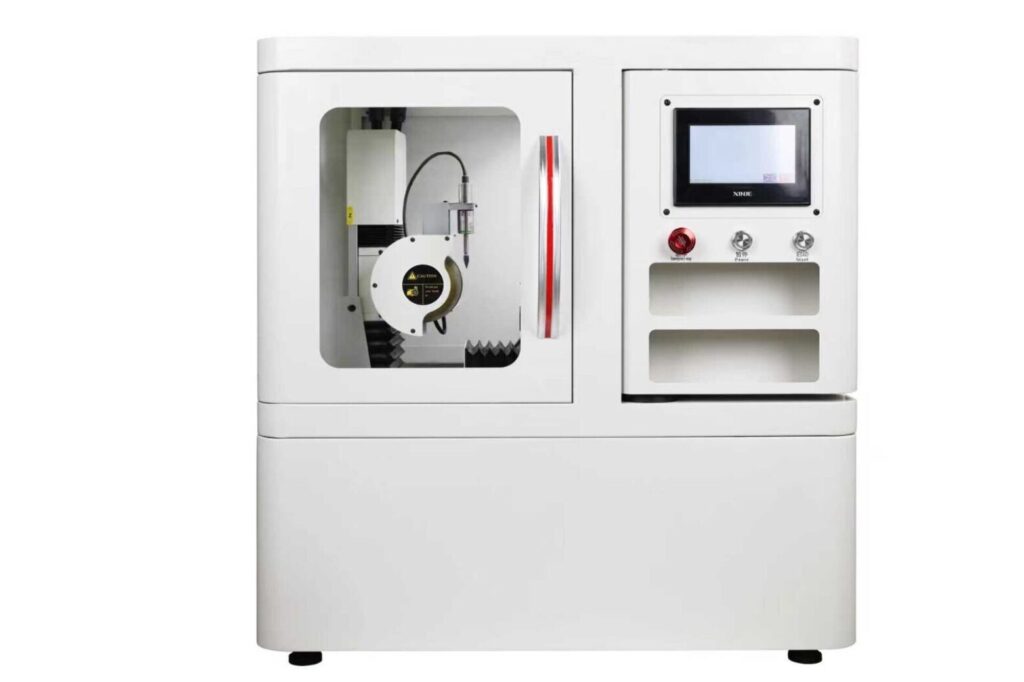

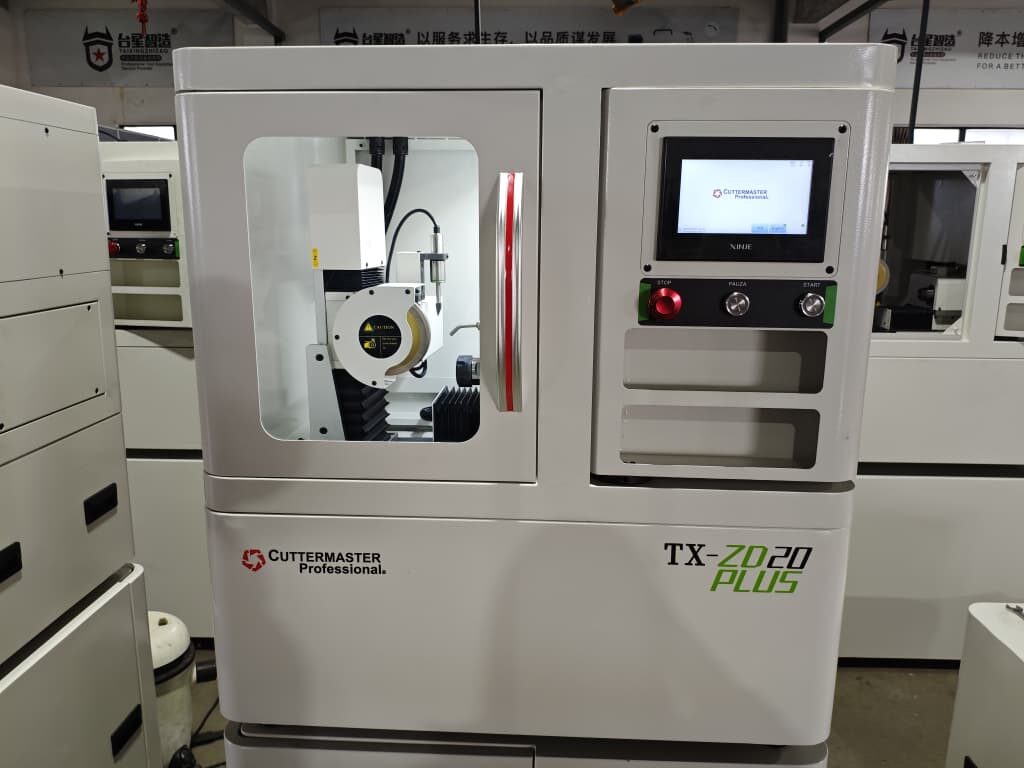

Cuttermasters CMZD20 Plus

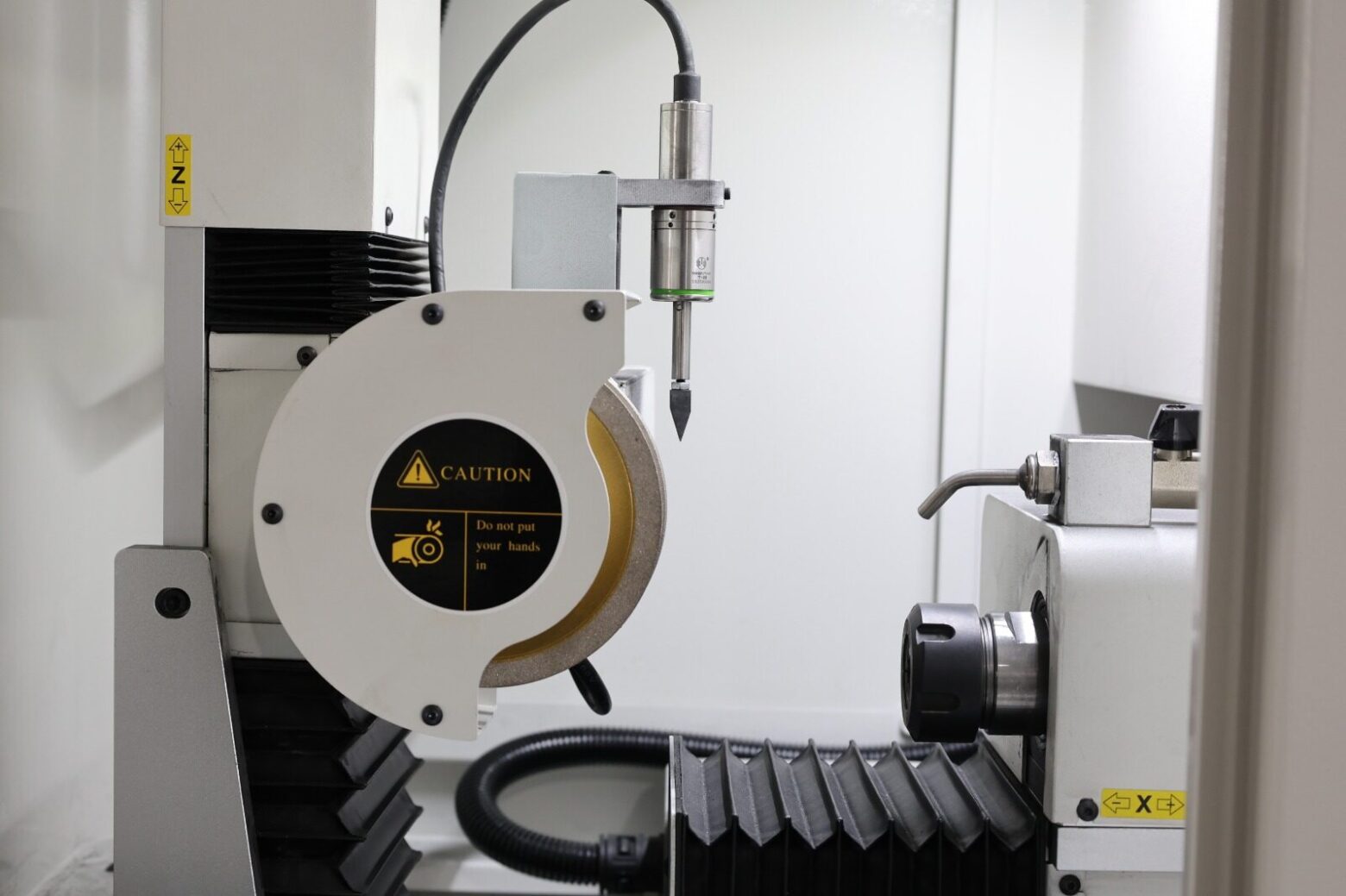

Cuttermasters ZD20 PLUS Sharpens, chamfering tools, drill bits, end mill ends, corner radius end mill ends, and ball-nose end mills, with optional accessories for parabolic drills, single-flute end mills, sheet metal drills, and PM drills. Grinding using coolant enhances tool surface finish and extends the grinding wheel’s service life. A fully enclosed grinding process ensures a pollution-free grinding environment.

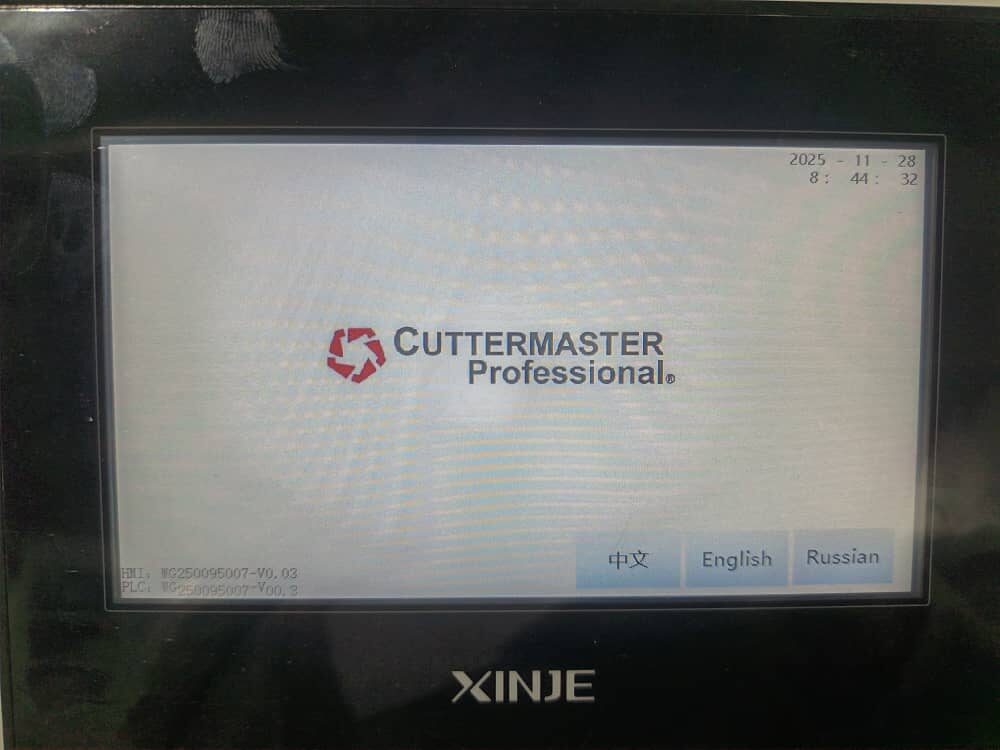

Small Foot print, Menu prompt. canned cycles is with feature variables make this a very easy machine to set up and run.
$6745.00 US In stock March 2026
End Mill Ends
Diameter Range flutes Options | Drill Bit Diameter Range Tip Angle Options | Ball Nose Bull Nose Diameter Range | Rated Tool Length |
1/8-3/4 2/3/4 Flutes | 1/8-3/4 118°,140°Optional | R.062、R.125 R.156、R.187 R.25 R.375 | ≥2-3/8 .75 Thru Spindle |
Compatible Materials | Grinding wheel (Standard) | Dimensions (L×W×H) Motor Power Requirements | Net Weight Control |
Cobalt, Carbide、Powdered Metal High-Speed Steel Tool、Twist Drill | Brazed Bond SDC 2 pieces (long life) Plated Bond CBN and Diamond Available | 90*60*92cm 36 x 18 x 38 AC Servo 220 Volt | 154.5 kgs 350 Pounds Menu Prompt Canned Cycle |
